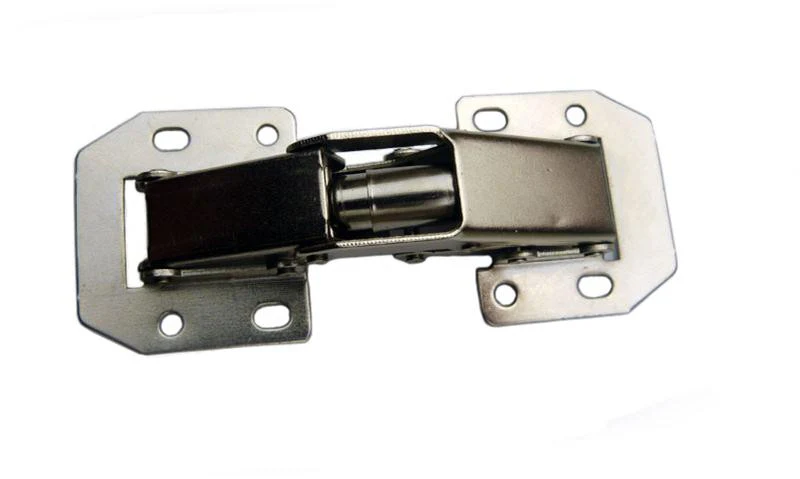

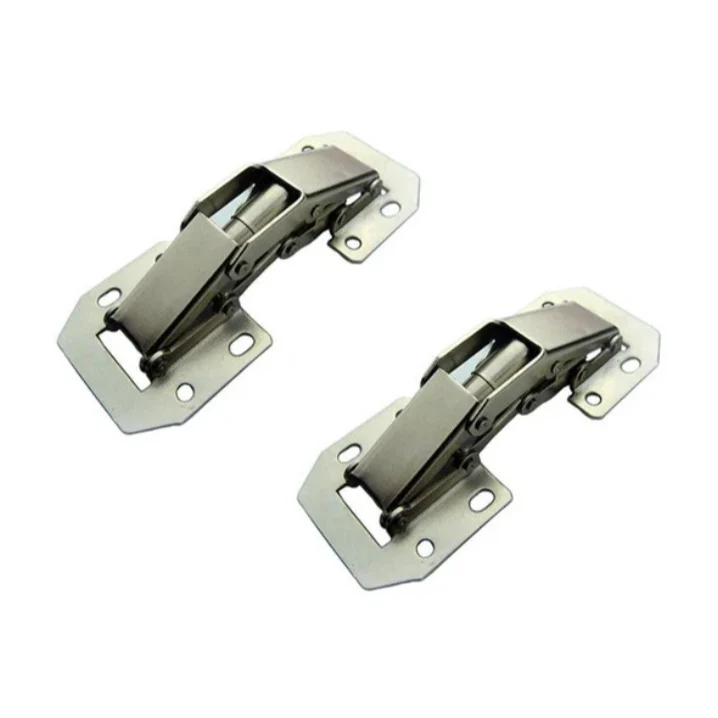

Surface Mount Hinge 90Ā° Zinc Plated
Our Surface Mount Hinge (also known as Easy On) has a 90 Degree Sprung opening angle and is required for a maximum door thickness of 18mm. This hinge is simple to fit, simply screw to the door and the frame. As well as standard kitchen cupboard doors, this hinge can used on sheet metal and plastic panels. This sprung hinge is suitable for full or half overlay, inset doors and are suitable for 1 door.

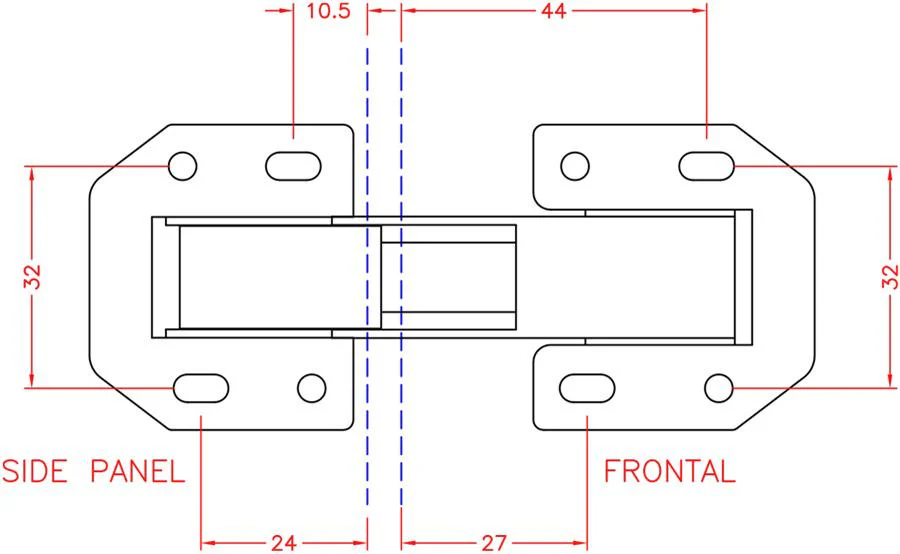

The products Specification sheet can be found at the bottom of this page, please read for installation guidance.
Ā Please clickĀ hereĀ to view our Help Guides & Advice page.
Ā
Ā
Specifications
Ā
- Maximum Door Thickness: 18mm
- Opening Angle: 90 Degree Sprung
- Cup Drilling: None Required
- Sold As:Ā Pair
- Finish:Ā Zinc Plated
- Screws:Ā Sold SeparatelyĀ Ā
Ā
Ā
Alternative Products
Surface Mount Easy On Hinge - 150 Deg Opening
