Lamp Lever Latch - Retaining Force 101 - 200N - Brown
Our Lamp LL-BR 66mm Lever Latch is designed to be installed on the inside of a handle lessĀ overlay or flap door where the door is longer than the frame. The strike plate is fitted to the underside of the cabinet front edge for a discreet finish.
Installation position can be adjusted by 1.5mm vertically and horizontally. Retaining force of 196N / 20KGF,
Fitting Screws Included.
Ā
Ā
Ā

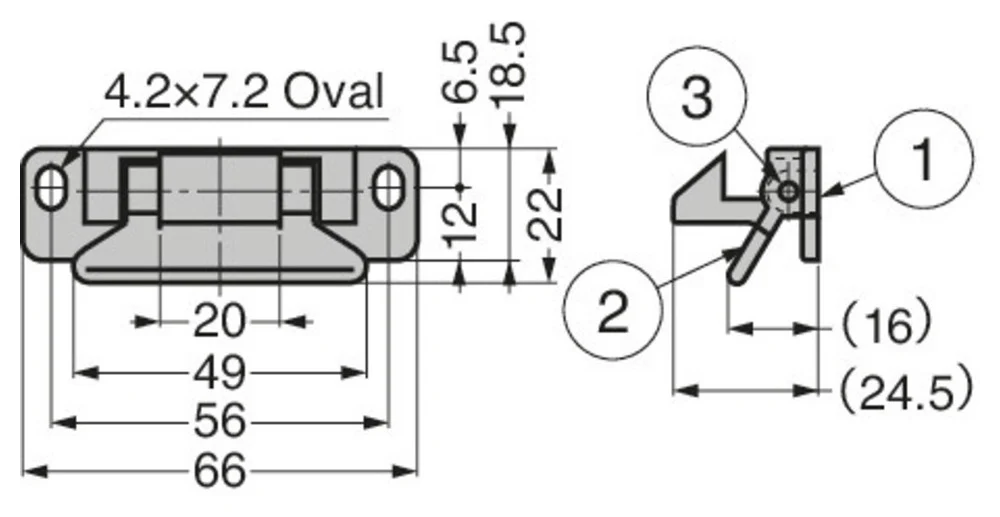

Specifications
Ā
- Body Length: 66mm
- Body Width: 22mm
- Plate Length: 30mm
- Plate Width: 17mm
- Material: Brown polyamide catch
- Retaining Force: 101 - 200 N
- Slotting Hole: 2 x 4.2 x 7.2mm
Original: $1.90
-65%$1.90
$0.66
Description
Our Lamp LL-BR 66mm Lever Latch is designed to be installed on the inside of a handle lessĀ overlay or flap door where the door is longer than the frame. The strike plate is fitted to the underside of the cabinet front edge for a discreet finish.
Installation position can be adjusted by 1.5mm vertically and horizontally. Retaining force of 196N / 20KGF,
Fitting Screws Included.
Ā
Ā
Ā
Specifications
Ā
- Body Length: 66mm
- Body Width: 22mm
- Plate Length: 30mm
- Plate Width: 17mm
- Material: Brown polyamide catch
- Retaining Force: 101 - 200 N
- Slotting Hole: 2 x 4.2 x 7.2mm
