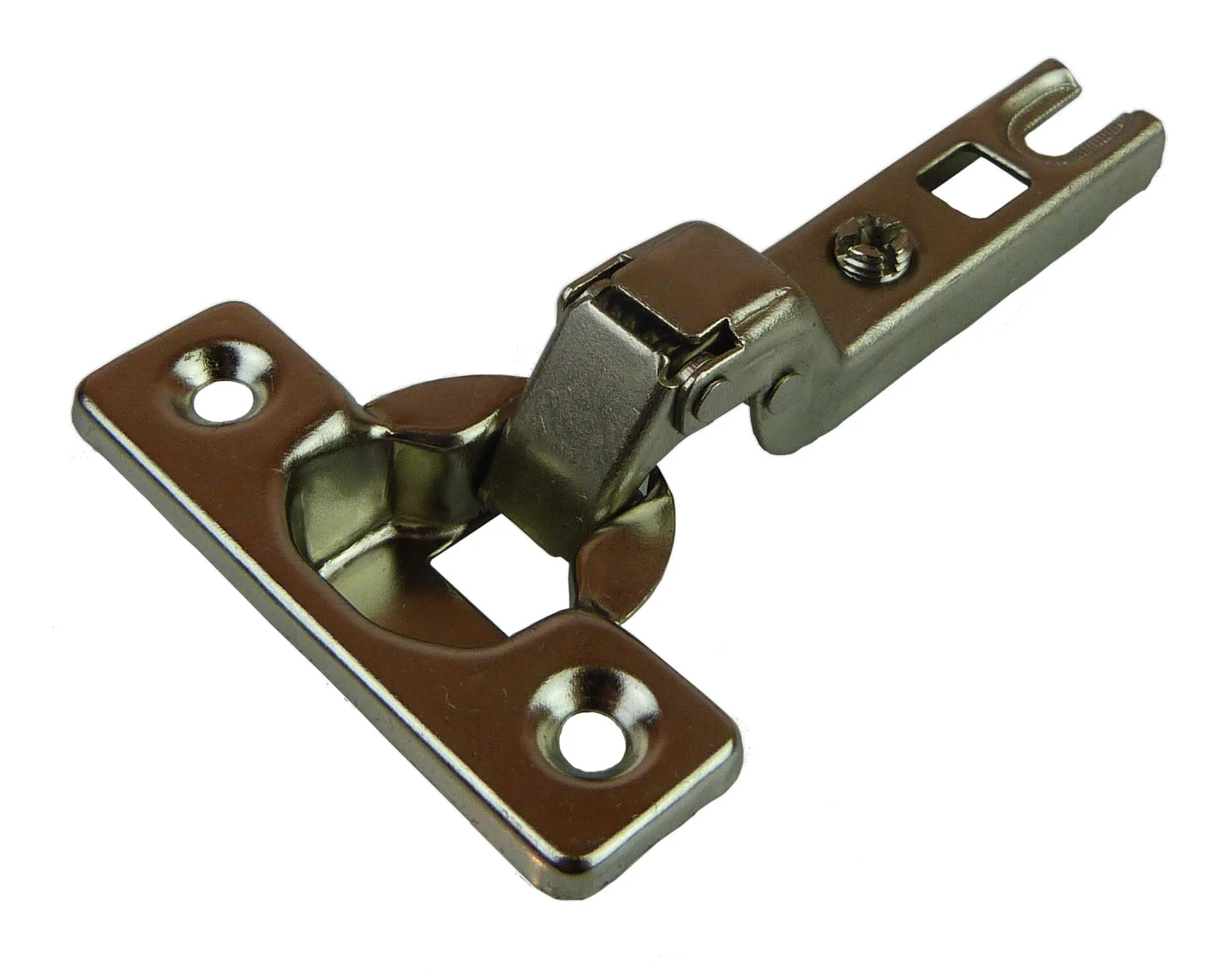

Tutti Half Overlay Cabinet Mini Hinge 95° with 2mm Plate

Our Tutti Half Overlay Mini Cabinet Hinge has an opening angle of up to 95 degrees, giving you full access to the cupboard. Mini hinges mainly found in office, occasional furniture and display cabinets. The euro screws on the hinge, allow height, depth and side movement to ensure the door is a perfect fit when closed.



The products Specification sheet can be found at the bottom of this page, please read for installation guidance.

 Please click here to view our Help Guides & Advice page.





Specifications



• Overlay: 4 - 7mm
• Opening Angle: 95 degrees
• Door Thickness: 12 - 18mm
• Side Thickness: 15mm
• Cup Diameter: 26mm
• Hinge Type: Mini Hinge
• Plate Height: 2mm
• Material: Steel
• Hinge Finish: Nickel Plated
• Self Closing: Yes
• Soft Closing: No
• Adjustment: 3 way

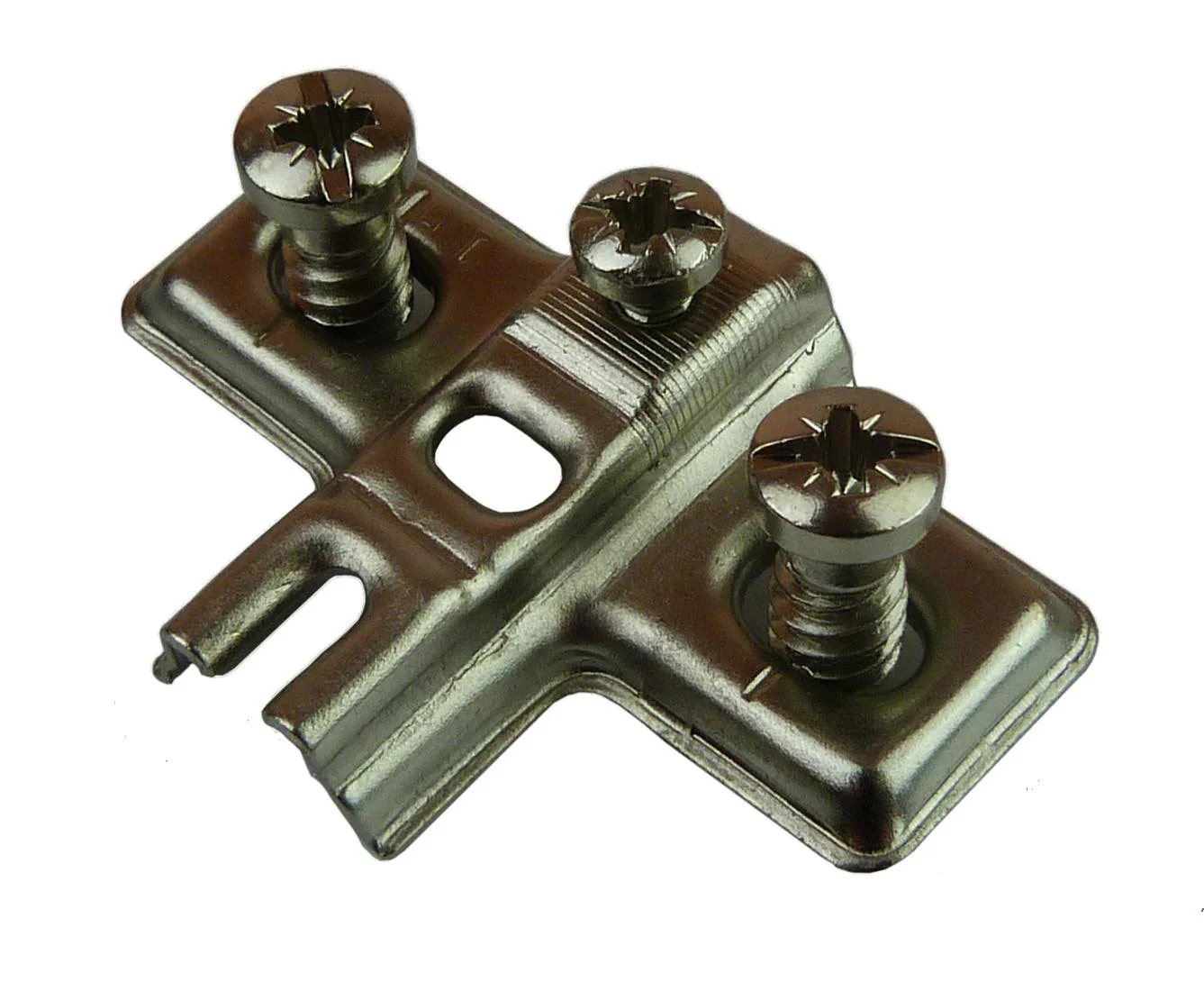

• Plate: 2mm Plate
• Pack Contents: 2 Hinges, 2 Plates





Tools & fittings for the job

26mm hole cutter

Torq-Fix Pozi Countersunk Screw 4 x 16mm (8 x 5/8") Zinc
