Tutti Full Overlay Cabinet Mini Hinge 95° - Slide On

Our Tutti Full Overlay Mini Cabinet Hinge has an opening angle of up to 95 degrees, giving you full access to the cupboard. Mini hinges mainly found in office, occasional furniture and display cabinets. The euro screws on the hinge, allow height, depth and side movement to ensure the door is a perfect fit when closed.



The products Specification sheet can be found at the bottom of this page, please read for installation guidance.

Please click here to view our Help Guides & Advice page.





Specifications



• Overlay: 15 - 18mm
• Opening Angle: 95 degrees
• Door Thickness: 12 - 18mm
• Side Thickness: 18mm
• Cup Diameter: 26mm
• Cup Drilling Depth: 9.5mm
• Hinge Type: Mini Max
• Material: Steel
• Finish: Nickel Plated
• Self Closing: Yes
• Soft Closing: No
• Adjustment: 3 way

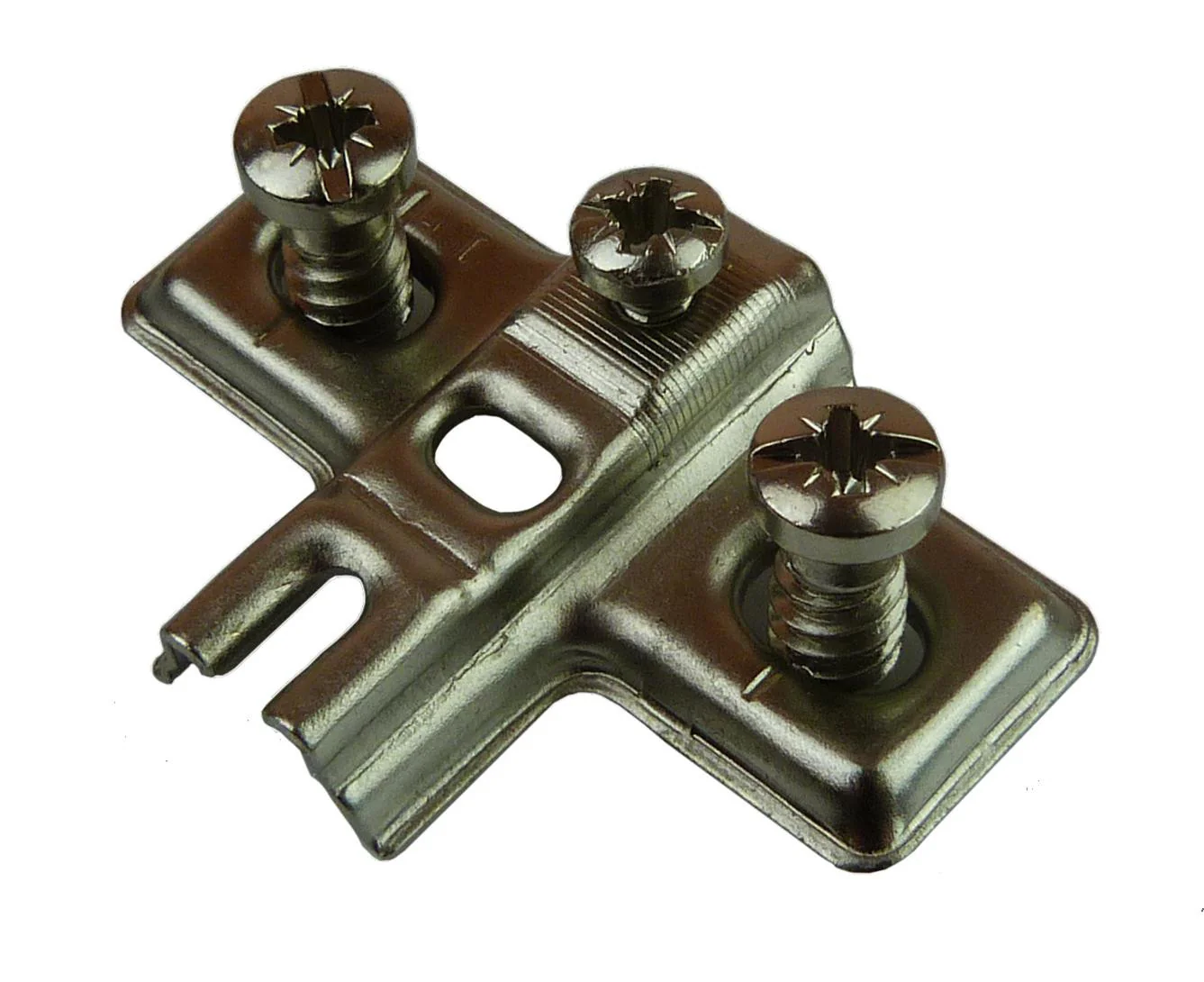

• Pack Contents: 2 Hinges & 2 Mounting Plates





Tools & fittings for the job

26mm hole cutter

Torq-Fix Pozi Countersunk Screw 4 x 16mm (8 x 5/8") Zinc
