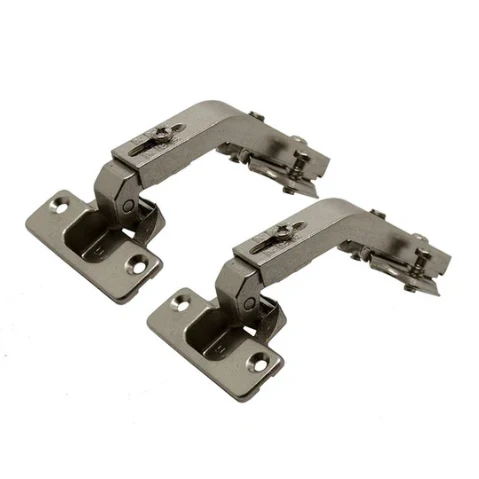

Our Series 63 Bi-Fold 135° Clip On hinge is used for connecting a second door to another door already attached to the cabinet. This Bi-Fold action allows you to have full access to negative inclined corner cabinets. The opening angle is 90 - 135 degrees, using the supplied mounting plate will position both outside corners of the doors together +/- 2mm adjustment.

Bi-Fold hinges are used by most kitchen manufacturers, however, they are also suitable for bedroom, bathroom and office projects. The euro screws on the hinge, allow height, depth and side movement to ensure the door is a perfect fit when closed.

The products Specification sheet can be found at the bottom of this page, please read for installation guidance.

Please click here to view our Help Guides & Advice page.

Specifications

Overlay Adjustment: +/-3mm
Opening Angle: 90 - 135 degrees
Door Thickness: 14 - 24mm
Side Thickness: N/A
Cup Diameter: 35mm
Hinge Type: Clip On
Material: Steel
Hinge Finish: Nickel Plated
Closing: Sprung
Type: Bi-Fold
Adjustment: 3 way

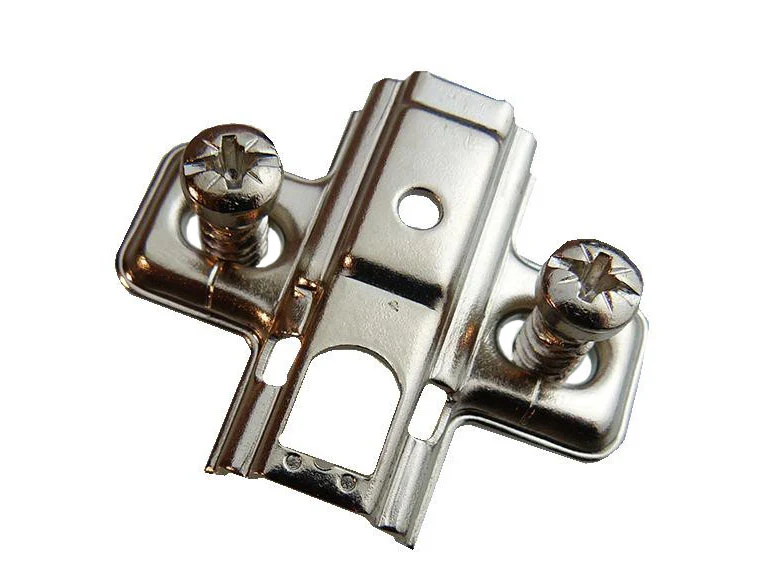

Plate: 0mm Plate
Pack Contents: 2 Hinges, 2 Plates

Tools & fittings for the job

35mm hole cutter

Torq-Fix Pozi Countersunk Screw 4 x 16mm (8 x 5/8") Zinc
